35 kW
Rated power
Climate Systems · Moneng DY Series
DY10000

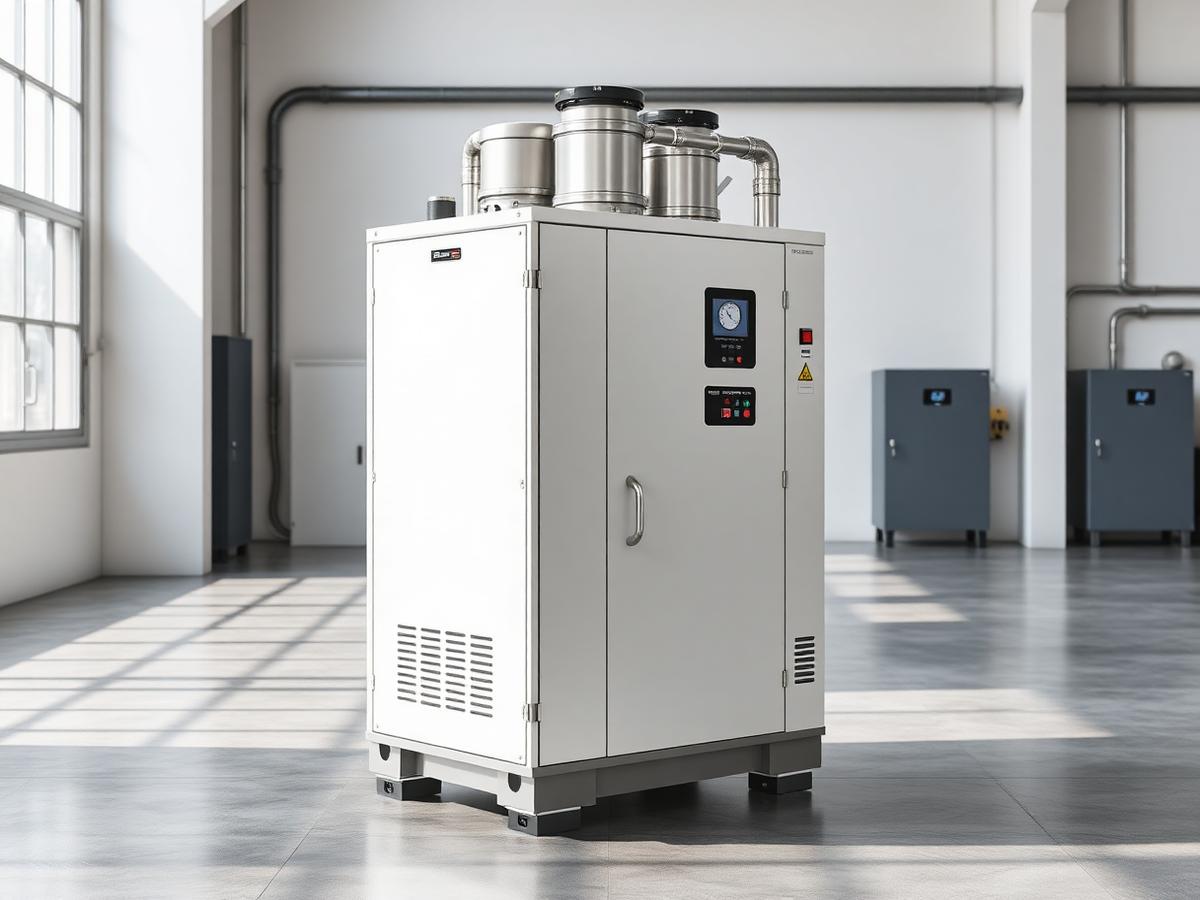

A 35 kW skid-mounted oxyhydrogen generator producing 10,000 L/h for medium industrial boilers and process furnaces. Engineered for continuous duty in plant-room environments.
10,000 L/h
Gas output
285.7
L/h per kW
Performance
Rated power35 kW
Gas output10,000 L/h (oxyhydrogen)
Power efficiency285.7 L/h per kW
Duty cycleContinuous (24/7 rated)
Gas deliveryOn-demand, no storage vessel
Physical
Form factorSkid-mounted, twin cell stack
FootprintApprox. 1,600 × 900 mm
WeightApprox. 780 kg
EnclosureSteel skid, plant-room rated
Installation
Electrical supply3-phase 380–480 V, 50/60 Hz
Feed waterDeionised / distilled water, tempered
Gas connectionDedicated injection train with flow control & interlock
CommissioningEngineer-supervised commissioning
Sizing guidance
- 8–15 t/h steam equivalentSingle DY10000, natural gas or biomass firing.
- Coal or heavy fuelAllow one band higher — see the sizing tool for fuel-adjusted guidance.
Not sure which frame fits your installation? Use the sizing tool →
Specification on request
This configuration is quoted per installation. Tell us about your boiler, fuel and site and our engineering sales team will respond with a tailored specification and quotation.
