HERO Irrigation hydrogen nano-bubble system — stainless steel cabinet with touchscreen HMI, caster-mounted

Quick answer

The HERO Irrigation Hydrogen Nano-bubble System dissolves hydrogen at nano-bubble scale into irrigation water for glasshouses, nurseries and controlled-environment agriculture — US$16,311 worldwide (DDP to selected destinations, DAP elsewhere) with remote-guided commissioning, available to order online, including Australia, the United States, the Netherlands and the EU. Output is 20 L/min at 3,000–5,000 ppb dissolved hydrogen (sensor-verified), generated on site from water by PEM/SPE electrolysis.

Updated

Peer-reviewed field trial

Hydrogen-rich irrigation water raised cherry tomato yield by about 40%

In a two-year greenhouse trial in Shanghai (2021) and Nanjing (2023), cherry tomatoes irrigated with hydrogen nanobubble water produced about 40% more fruit per plant than plants on ordinary water, and about 27% more when both groups were also fertilised. The fruit was sweeter and higher in lycopene. Published in Plants (2024), Nanjing Agricultural University.

+39.5%
yield per plant (no fertiliser)
+27%
yield per plant (with fertiliser)
+22%
lycopene
Study summary →

Trial results, not a yield guarantee. Outcomes vary with crop, climate and practice.

Irrigation Systems · HERO Series

HERO Irrigation Hydrogen Nano-bubble System

HERO Irrigation Hydrogen Nano-bubble System
US$16,311
Questions first? Chat on WhatsApp
VisaMastercardAmexBank transfer

Secure checkout · 24-month warranty · 90-day returns

Warranty, refund & pre-dispatch verification — supplied by YBG Group
24 months
Full equipment warranty from delivery.
90 days
90-day returns — see the refund policy.

Visible bubble stream during operation. A production unit running into a small vessel. The visible plume is not a measurement of nano-bubble output. Full footage and context →

Every order is personally reviewed before dispatch. Not a queue and not a call centre: the founder checks your destination, supply voltage and tank connection against the order, and follows up with you directly before anything ships. That is the advantage of buying from a small, accountable engineering operation rather than a distributor.

An industrial hydrogen nano-bubble system that dissolves hydrogen, generated on site from water, into irrigation water for greenhouse, nursery and horticultural operations.

Installation: the unit draws from an open, non-pressurised tank or reservoir and recirculates the water until the target dissolved-hydrogen level is reached; the site's irrigation pump then pressurises the delivery line. Do not connect the inlet to a pressurised supply or tap.

Built for commercial glasshouse, nursery and horticultural operations, HERO Irrigation treats the water in your holding tank or reservoir and runs continuously through the growing season. Coverage: Up to ~10 ha of drip irrigation per unit, based on manufacturer guidance and reported deployments in China. Sizing for your operation is confirmed with our engineers before order. Heated sites can pair it with the Glasshouse Boiler Oxyhydrogen Generator on the climate side, quoted per installation.

It sits ahead of the equipment you already run — irrigation pumps, irrigation piping, filter banks, irrigation controllers and fertigation systems stay untouched — so it suits drip and micro-sprinkler networks, furrow irrigation, sub surface irrigation and canal-fed holding tanks alike. In hot, water-scarce regions that includes date palm irrigation system layouts and desert farm irrigation schemes. Hydrogen is generated on site from water; nothing is added to the water.

Performance
Hydrogen water output20 L/min
Dissolved hydrogen (sensor-verified)3,000–5,000 ppb
Dissolved hydrogen (methylene-blue titration)2,000–4,000 ppb
Hydrogen generationOn site from water (PEM/SPE electrolysis); nothing is added to the water
Output pressure0–0.2 MPa
Input power800 W
Voltage100–240 V ±15%, 50–60 Hz
Physical
ProductHERO Irrigation Hydrogen Nano-bubble System
Form factorStainless-steel cabinet on casters, touchscreen HMI
Dimensions (W × D × H)550 × 350 × 970 mm
Weight83 kg (including accessories)
ProtectionIP54 · Class I
Installation & operation
Water connectionDraws from an open, non-pressurised reservoir and recirculates until the target dissolved-hydrogen level is reached; the site irrigation pump then pressurises the drip line. G1/2 thread, 8 mm push-fit outlet with valve, returning to the same tank. Do not connect the inlet to a pressurised supply or tap.
Electrolysis feed water (internal reservoir)Distilled or RO water, TDS ≤ 50 ppm
Irrigation tank waterSuitability of your tank water — including bore, dam or fertigation solution — is confirmed with our engineers before order
CoverageUp to ~10 ha of drip irrigation per unit, based on manufacturer guidance and reported deployments in China. Sizing for your operation is confirmed with our engineers before order.
EnvironmentVentilated, away from heat sources and open flames — no direct sunlight
PlacementHorizontal, front panel facing the operator; properly grounded supply
CommissioningRemote-guided commissioning included

Grower-focused resources and the consumer presentation of this system live at hydrogenmachines.com.au. Enterprise-scale agricultural water programs: ybgindustrial.com.

How it works · Tank irrigation setup

Reservoir recirculation to root-zone delivery

HERO Irrigation operates on the unpressurised side of the irrigation circuit. It draws from the reservoir and recirculates the water until the target dissolved-hydrogen condition is reached; the site irrigation pump then supplies the pressure required by the field network.

Water reservoir

An open, non-pressurised water source — for example, a 1,000 L holding tank.

HERO Irrigation unit

Draws reservoir water, dissolves hydrogen into it and returns the flow to the tank for recirculation until saturated.

Irrigation pump

Draws the hydrogen-rich water from the reservoir and pressurises the delivery line.

Drip irrigation system

Distributes the pressurised hydrogen-rich water through field drip lines to the plant root zone.

Recirculation loop between the reservoir and HERO Irrigation continues until the water reaches its target dissolved-hydrogen condition.
In operation

Visible bubble stream during operation

HERO Irrigation system — visible bubble stream during operation, not a measurement of nano-bubble output.

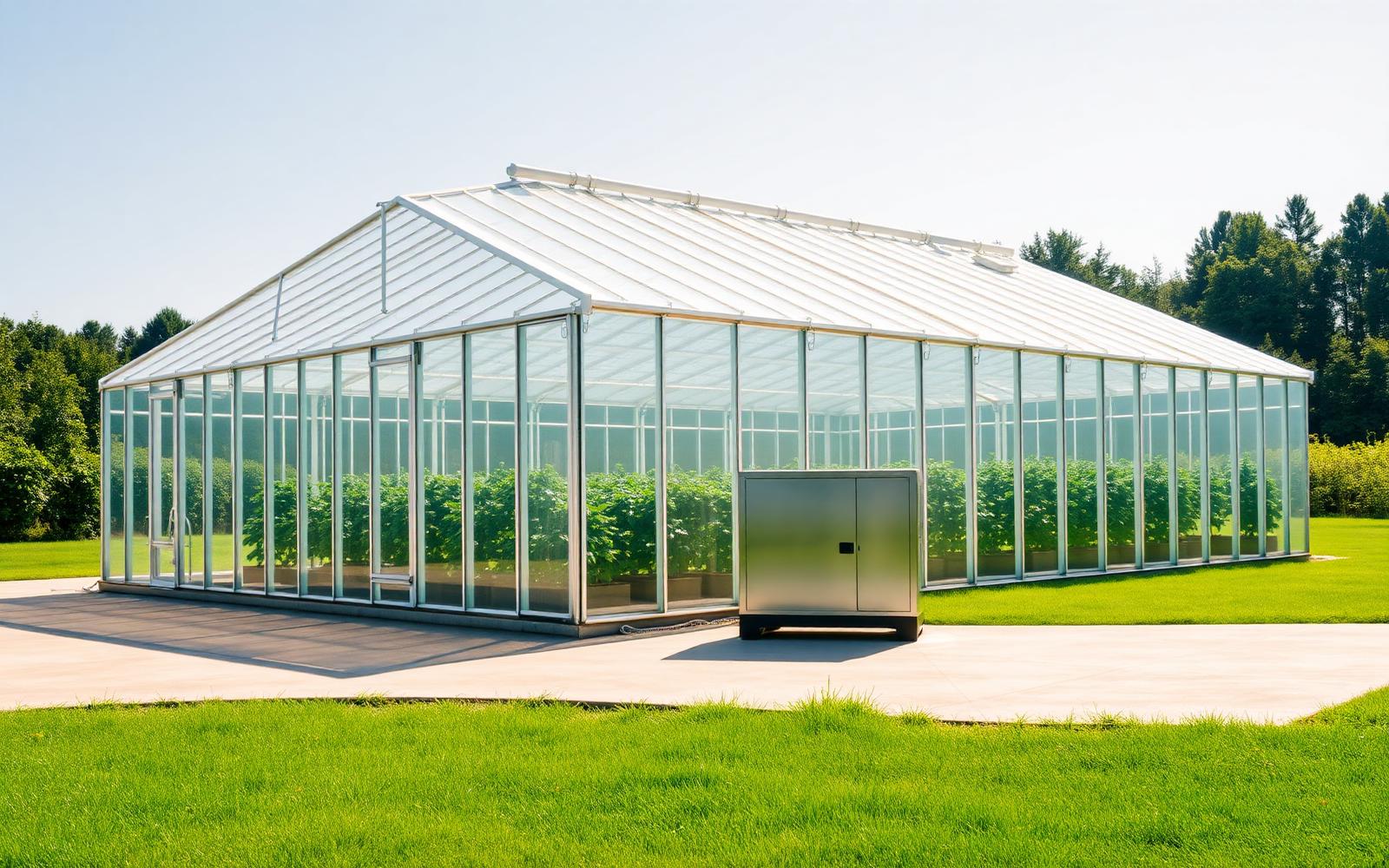

HERO Irrigation Hydrogen Nano-bubble System beside a commercial glasshouse — 970 mm stainless cabinet on casters, shown to scale against the glass wall

Shown to scale beside a commercial glasshouse — a 970 mm cabinet on casters that parks beside the holding tank it treats.

20 L/min
Hydrogen water output
3,000–5,000 ppb
Dissolved hydrogen — sensor-verified
0–0.2 MPa
Output pressure
800 W
Input power — single-phase supply

HERO Irrigation Hydrogen Nano-bubble System · 550 × 350 × 970 mm · 83 kg incl. accessories · IP54

Footprint

Cabinet dimensions & siting

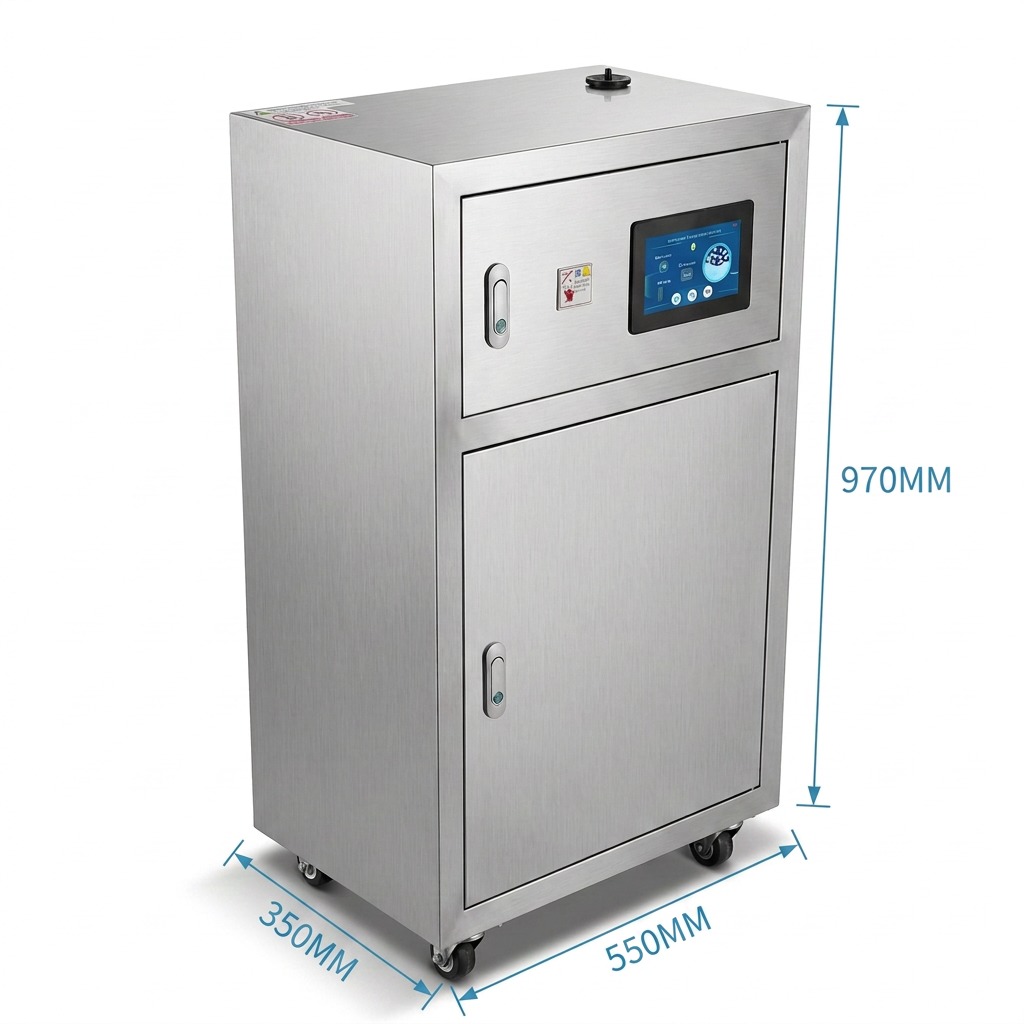

HERO Irrigation dimensions — 550 mm wide, 350 mm deep, 970 mm high, caster-mounted stainless cabinet

Compact footprint — 550 × 350 × 970 mm on casters — drops into the pump room beside the holding tank it treats.

The same unit also serves small recirculating volumes — plunge pools, spas and small pools — where the dissolved-hydrogen plume is directly visible. Unscripted output footage and connection notes: secondary applications.

Questions, answered

Before you order

What does the HERO Irrigation Hydrogen Nano-bubble System do?

It draws water from an open, non-pressurised reservoir and enriches it with hydrogen nano-bubbles, recirculating until the target level is reached — 20 L/min output at 3,000–5,000 ppb dissolved hydrogen (sensor-verified).

Which growing operations is it designed for?

Commercial glasshouses, nurseries, vertical farms, hydroponic operations, vineyards, date palm plantations, desert farm irrigation schemes and turf — any controlled-environment or intensive horticultural operation that can feed its irrigation pump from a holding tank or reservoir.

Does it work with my existing irrigation equipment?

Yes. HERO Irrigation is an addition on the reservoir side of your existing irrigation equipment, not a replacement for it: irrigation pumps, irrigation piping, filter banks, irrigation controllers and fertigation systems all stay exactly as they are. The unit treats the water in an open, non-pressurised tank; your own irrigation pump then draws from that tank and pressurises the drip or micro-sprinkler network as it does today. Growers typically source it alongside their usual irrigation equipment suppliers rather than instead of them.

Do I need to redesign my existing irrigation infrastructure?

No. The system sits beside the facility's existing holding tank or reservoir, runs from a standard single-phase supply (100–240 V ±15%, 50–60 Hz, properly grounded) drawing only 800 W, and requires no changes to driplines, emitters, dosing systems or climate computers.

Is anything added to the irrigation water?

No. Hydrogen is generated on site from water; nothing is added to the water. The unit produces hydrogen by PEM/SPE electrolysis and dissolves it into the line — no magnesium, no minerals, no dosing chemicals.

What are the key specifications?

HERO Irrigation Hydrogen Nano-bubble System: 20 L/min hydrogen-water output at 3,000–5,000 ppb dissolved hydrogen (sensor-verified; 2,000–4,000 ppb by methylene-blue titration) by PEM/SPE electrolysis; 0–0.2 MPa output pressure; 800 W input power on 100–240 V ±15%. Stainless-steel cabinet, 550 × 350 × 970 mm, 83 kg including accessories, IP54. Coverage: Up to ~10 ha of drip irrigation per unit, based on manufacturer guidance and reported deployments in China. Sizing for your operation is confirmed with our engineers before order.

How much does it cost and how do I order?

US$16,311. Delivery is DDP to selected destinations (freight, duties and import handling included) or DAP elsewhere (freight included; import duties, VAT and customs handling payable by you on arrival). Order directly through the secure checkout on this page, or request a pro-forma invoice — both include remote-guided commissioning.

What does DDP delivery include?

Delivered Duty Paid to your site — freight, duties and import handling are covered in the listed price. Remote-guided commissioning is included, so your own team completes the reservoir connection with our engineers on call.

Who makes the HERO Irrigation system?

The HERO Irrigation system is supplied by YBG Group International Limited.

Does YBG supply HERO Irrigation in the Netherlands and EU?

Yes. YBG Global supplies HERO Irrigation to the Netherlands and other EU countries. The system is priced at US$16,311, delivered to your site under DAP (Delivered At Place) terms — freight is included, but import duties, VAT and customs handling in your destination country are payable by you on arrival, separately from the US$16,311 price. Remote-guided commissioning is included. Use the landed-cost calculator above with your destination selected to see this reflected before you order.

Does YBG supply HERO Irrigation in the United States?

Yes. YBG Global supplies HERO Irrigation to commercial growers in the United States and Canada. The system is priced at US$16,311 — DDP to selected destinations (freight, duties and import handling included) or DAP elsewhere — with remote-guided commissioning included.

Does YBG supply HERO Irrigation in Australia?

Yes. YBG Global is operated by YBG Group International Limited, registered in Hong Kong. HERO Irrigation is delivered to Australia on DDP terms — freight, import duties and taxes prepaid — with remote-guided commissioning included.

Deeper on the science — nano-bubble stability, dissolved-gas measurement, and how hydrogen compares with oxygen, air and ozone nano-bubbles: Hydrogen nano-bubble technology.

Read: Hydrogen in the irrigation line: what growers should know — by Dr Peter Griffiths.
