20 kW
Rated power
Climate Systems · Moneng DY Series
DY6000

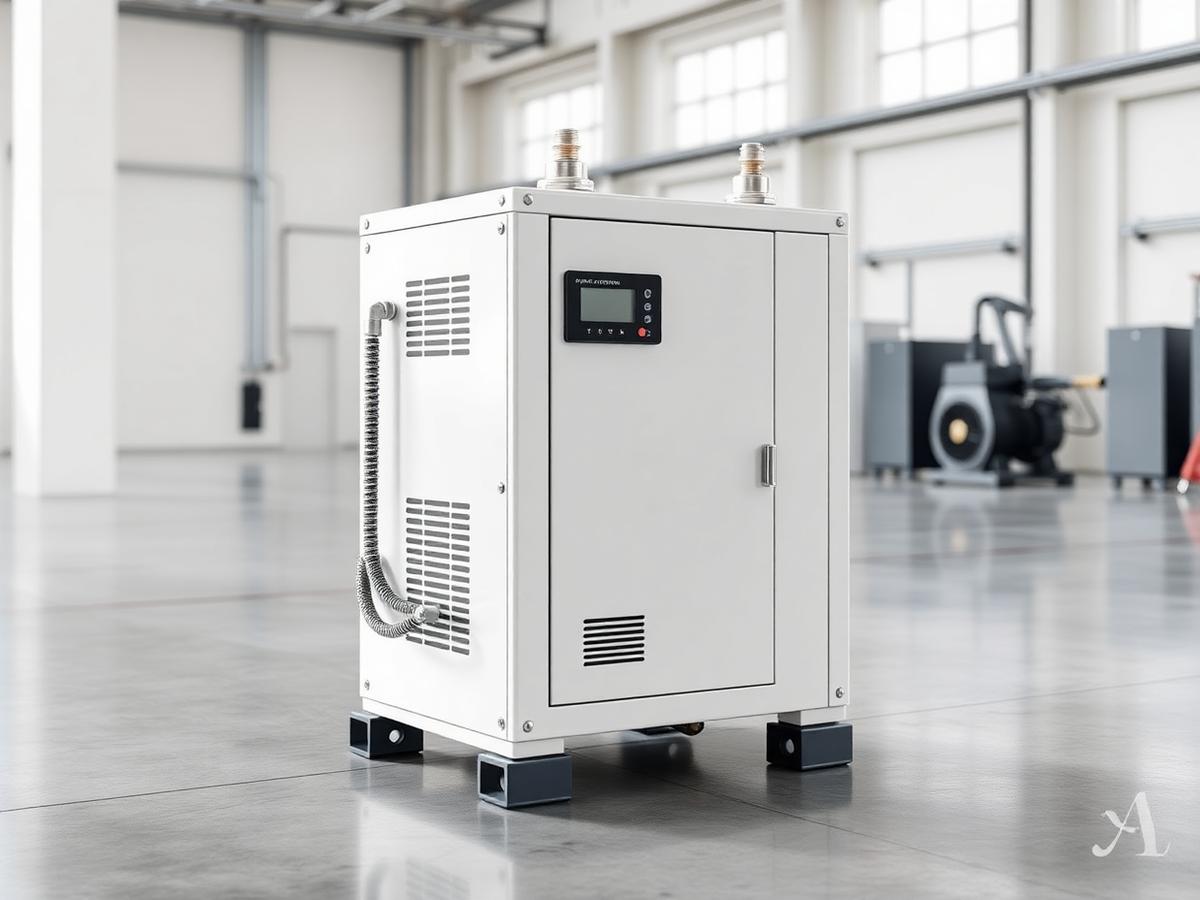

A 20 kW cabinet oxyhydrogen generator producing 6,000 L/h of HHO gas for combustion enhancement in small-to-medium boilers, furnaces and kilns. The highest power-efficiency rating in the DY series.
6,000 L/h
Gas output
300
L/h per kW
Performance
Rated power20 kW
Gas output6,000 L/h (oxyhydrogen)
Power efficiency300 L/h per kW
Duty cycleContinuous (24/7 rated)
Gas deliveryOn-demand, no storage vessel
Physical
Form factorFloor-standing cabinet
FootprintApprox. 900 × 800 mm
WeightApprox. 320 kg
EnclosureBrushed stainless steel, IP54
Installation
Electrical supply3-phase 380–480 V, 50/60 Hz
Feed waterDeionised / distilled water
Gas connectionInjection lance at burner / combustion air stream
CommissioningRemote-guided commissioning included
Sizing guidance
- Up to ~4 t/h steam equivalentSingle unit, natural gas or diesel firing.
- 4–8 t/h steam equivalentTwo DY6000 units in parallel — retains the 300 L/h/kW efficiency advantage over a single larger frame. Multi-unit configurations are quoted via Request Specification.
- Glasshouse / horticultural boilersStandard pairing for the Complete Glasshouse Solution bundle.
Not sure which frame fits your installation? Use the sizing tool →
$29,900
Single unit · DDP worldwide delivery (duties & taxes included) · remote-guided commissioning.
